Product Description

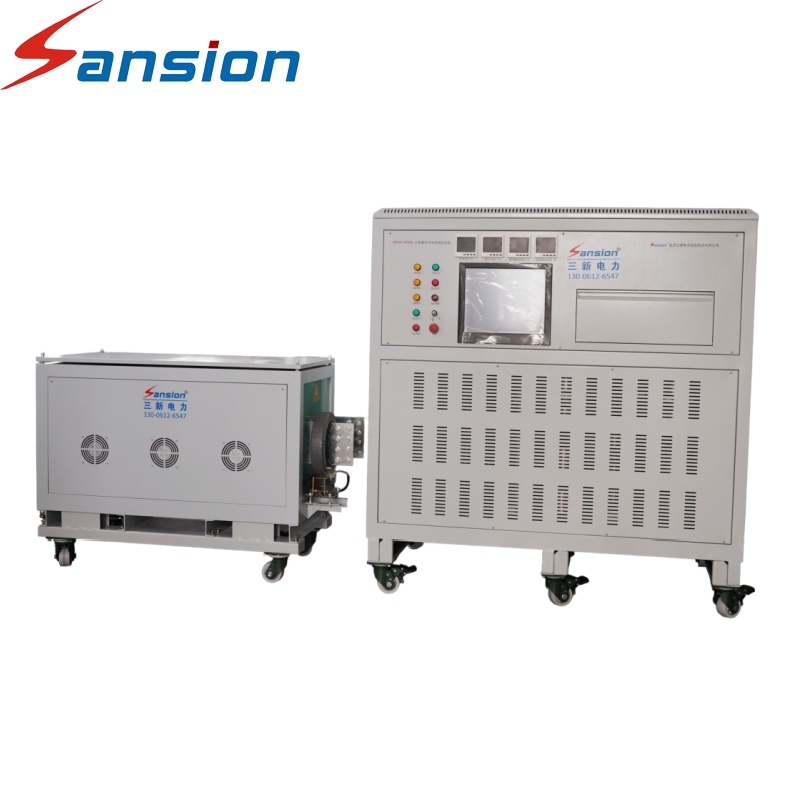

SXWA-5000A Three Phase High Current Temperature Rise Test System
The SXWA-5000A Three Phase High Current Temperature Rise Test System is a high current testing solution developed for verifying the thermal performance and operational reliability of electrical equipment. The system is manufactured with a high capacity voltage regulator and high magnetic permeability core transformer, providing stable current output and efficient testing performance.
By applying controlled high current to the tested products, the equipment helps users evaluate temperature increase, heat accumulation, and thermal stability during continuous operation. It is designed to meet the testing requirements of electrical manufacturers, inspection centers, and engineering laboratories.
The SXWA-5000A features accurate digital measurement, intelligent operation, and safety protection functions. The instrument directly displays current, voltage, and temperature values, while the automatic test mode supports curve generation and standard report creation. It is suitable for quality verification of circuit breakers, switchgear, protection panels, busbars, cables, and other current-carrying electrical equipment.
Product Important Parameters
| Parameter |
Specification |
| Product Model |
SXWA-5000A |
| Product Type |
Three Phase High Current Temperature Rise Test System |
| Rated Current Output |
5000A |
| Testing Function |
Temperature Rise Verification |
| Test Objects |
Circuit Breaker, Switchgear, Protection Panel, Busbar, Cable |
| Measurement Method |
Digital Current, Voltage and Temperature Measurement |
| Operation Mode |
Manual / Automatic Control |
| Safety Function |
Overcurrent Protection and Current Timing Setting |
Product Applications
Circuit Breaker Performance Verification
The system is suitable for circuit breaker manufacturers and testing organizations to evaluate temperature rise characteristics and ensure reliable operation under high current conditions.
Protection Equipment Testing
It can be used for protection panels and electrical protection devices to verify thermal performance and operating stability during continuous current loading.
Power Industry Quality Control
The equipment supports quality inspection and performance verification in power equipment factories, laboratories, and engineering testing projects.
Product Advantages
Reliable High Current Testing
The system provides stable 5000A current output for professional temperature rise testing of electrical equipment.
Precise Test Data Acquisition
Digital measurement technology ensures accurate collection of current, voltage, and temperature test information.
Enhanced Safety Protection
Overcurrent protection and timing current settings improve operational safety during testing.
Suitable for Industrial Applications
The equipment is designed for long-term use in manufacturing facilities, laboratories, and power industry testing environments.
FAQ
Q1: What is the main function of SXWA-5000A?
A: It is mainly used for temperature rise testing and thermal performance verification of electrical equipment.
Q2: Which industries need this type of equipment?
A: It is commonly used in power equipment manufacturing, electrical testing laboratories, and quality inspection organizations.
Q3: What products can be tested with this system?
A: It can test circuit breakers, switchgear, protection panels, busbars, cables, and other electrical components.
Q4: How does the system improve testing efficiency?
A: Digital measurement, automatic curve generation, and report output help simplify the testing process.
Q5: Can the equipment be customized for different projects?
A: Yes, customized solutions can be provided based on different current requirements and testing applications.
