1. Product Description

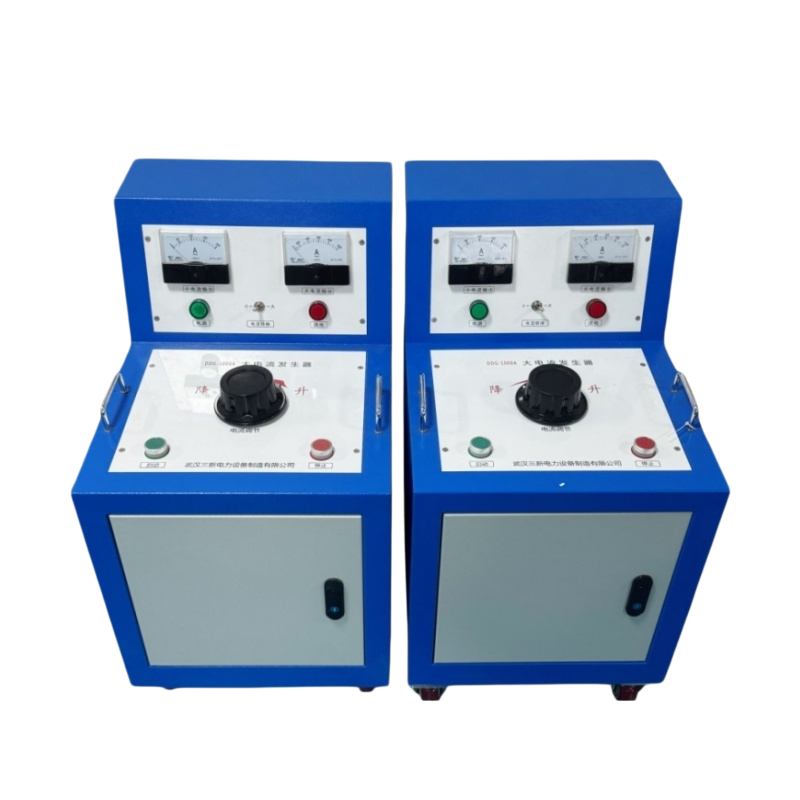

DDG Series High Current Generator
The DDG Series High Current Generator is a low-voltage, high-current dry-type transformer designed to provide large current output for electrical testing applications. It is an essential device for power equipment commissioning, industrial electrical testing, current injection tests, and temperature rise verification.
The equipment provides stable high current output and is widely used as a power source for current boosting tests and thermal performance evaluation of electrical equipment.
2. Important Product Parameters
| Parameter |
Specification |
| Product Series |
DDG Series High Current Generator |
| Input Voltage |
220V / 380V AC |
| Output Current Range |
500A-10000A |
| Transformer Type |
Low Voltage High Current Dry-Type Transformer |
| Current Monitoring |
Dual Ammeter Display |
| Regulation Method |
Automatic Voltage Regulation |
| Structure Type |
Integrated Type / Separate Type |
3. Product Applications
Temperature Rise Test Application
The high current generator provides a stable current source for temperature rise testing of transformers, switchgear, busbars, and other current-carrying electrical equipment.
Electrical Commissioning Testing
It is widely used for primary current injection testing, checking electrical connections, protection devices, and power system installation quality.
Laboratory and Industrial Testing
The equipment is suitable for electrical laboratories, manufacturing facilities, and engineering service companies requiring high current output for product verification and performance evaluation.
4. Product Advantages
Wide Current Output Range
The DDG series supports high current output from 500A to 10000A, meeting different testing levels and application requirements.
Stable Current Performance
The dry-type transformer design ensures reliable operation with stable output characteristics during long-duration testing.
Convenient Operation
Equipped with current display instruments and simple control functions, the equipment allows operators to monitor testing conditions easily.
Flexible Installation Structure
Integrated and separated structures are available, providing convenient transportation, installation, and maintenance options.
5. FAQ
Q1: What is the SXDA High Current Generator used for?
A: It is used to provide high current output for current injection tests, temperature rise tests, and electrical commissioning.
Q2: What is the output current range of this equipment?
A: The DDG series can provide output current from 500A to 10000A according to different models.
Q3: Can it be used for transformer testing?
A: Yes, it can provide a high current source for transformer temperature rise and related electrical tests.
Q4: Does the equipment support different structures?
A: Yes, integrated and separate structures can be selected according to installation requirements.
Q5: Can the output current be customized?
A: Yes, customized current capacity and configuration are available according to customer testing requirements.
