1. General Information:
2. Features:

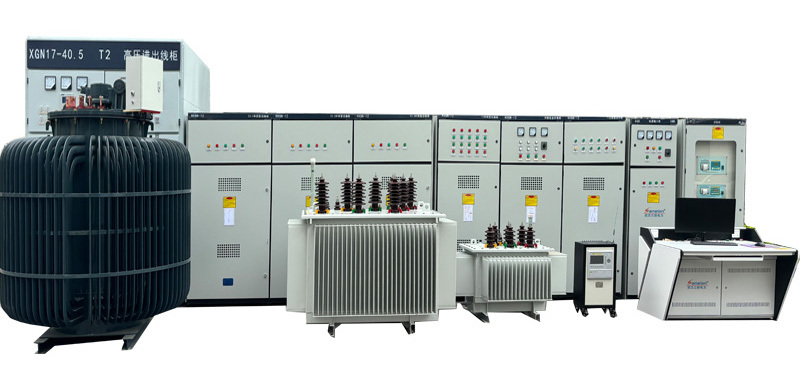

Q1: What testing functions does the Transformer Comprehensive Test Bench provide?
A: The Transformer Comprehensive Test Bench integrates multiple testing functions, including transformer turns ratio test, winding resistance test, no-load test, load loss test, short-circuit impedance test, applied voltage test, induced voltage test, insulation resistance test, leakage current test, partial discharge test, and temperature rise test (optional).
Q2: Can the test bench be customized according to customer requirements?
A: Yes. We provide customized solutions based on transformer type, voltage level, rated capacity, testing requirements, factory layout, automation level, and specific customer standards.
Q3: What types of transformers can be tested?
A: The system is suitable for various transformers, including power transformers, distribution transformers, dry-type transformers, oil-immersed transformers, single-phase transformers, three-phase transformers, and special transformers.
Q4: Which standards does the system comply with?
A: The equipment can be designed according to international standards such as IEC 60076, IEEE C57, ANSI, GB/T, as well as customer-specific testing requirements.
Q5: How accurate are the test results?
A: The system adopts high-precision measurement modules with excellent stability and repeatability. The typical measurement accuracy can reach ±0.2% or better depending on the test item and configuration.
Q6: Is the testing process fully automatic?
A: Yes. The intelligent software supports automatic testing, data acquisition, calculation, analysis, Pass/Fail judgment, and report generation, greatly reducing manual operation.
Q7: Can the system generate test reports automatically?
A: Yes. Test reports can be automatically generated in PDF or Excel format, including transformer information, test parameters, measurement results, curves, and evaluation results.
Q8: Can the system be integrated into a smart factory?
A: Yes. The system supports Modbus, OPC UA, TCP/IP, SQL Database, barcode and QR code communication, enabling MES/ERP integration.
Q9: What safety protections are included?
A: The system is equipped with emergency stop, high-voltage interlock, grounding detection, door protection, over-voltage protection, over-current protection, and automatic alarm functions.
Q10: What after-sales service do you provide?
A: We provide installation guidance, commissioning support, operator training, maintenance training, remote technical support, spare parts supply, and lifetime service.
